ZHENHUA 260ton Injection Molding Machine for Medical Syringe Making

Short Description:

Standard injection molding machine’s advantages:

Relatively low cost: Compared to new technology injection molding machines, the cost of standard injection molding machines is usually lower.

Materials for the production of syringes：

The main parts of a syringe, including the barrel, needle, and plunger, are generally made of high-quality medical-grade plastic.

(1) PP: PP is one of the most commonly used materials for syringe manufacturing. It has good chemical stability, dimensional stability and low toxicity.

(2) PC: PC is another material commonly used in syringe manufacturing. It has high durability and impact resistance, and can withstand higher temperatures.

Send email to us

Product Detail

Product Tags

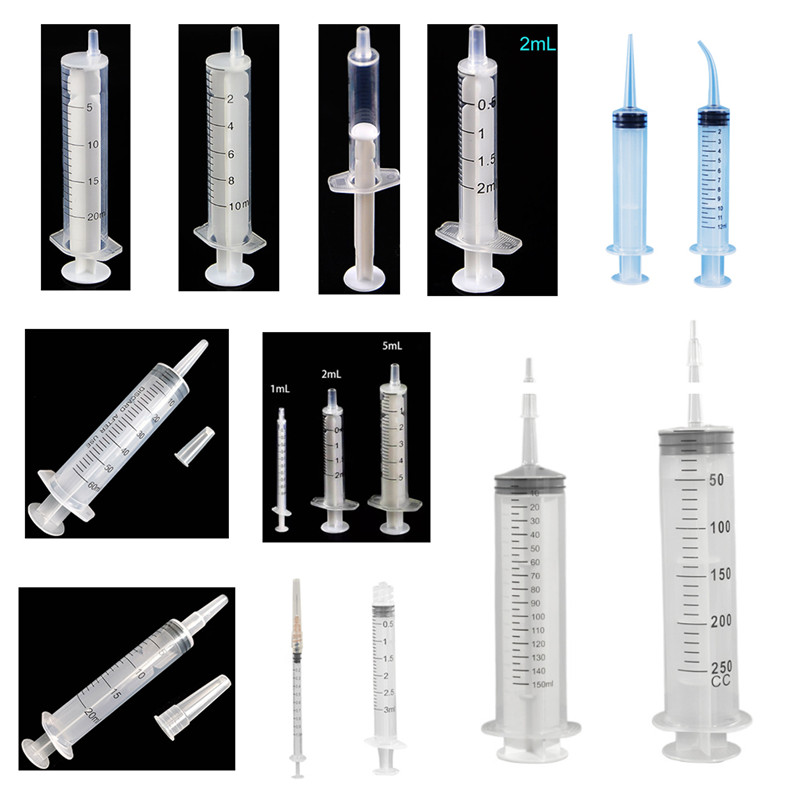

Medical Syringe Product Picture

ZHENHUA 260ton Injection Molding Machine for Medical Syringe Making-01 (3)

ZHENHUA 260ton Injection Molding Machine for Medical Syringe Making-01 (4)

Technical Parameter

Technical Parameter		Unit	ZH-268T
Technical Parameter		Unit	A	B	C
Injection Unit	Screw Diameter	mm	50	55	60
	Theoretical Injection Volume	OZ	18	22	26
	Injection Capacity	g	490	590	706
	Injection Pressure	MPa	209	169	142
	Screw Rotation Speed	rpm	0-170
Clamping Unit	Clamping Force	KN	2680
	Toggle Stroke	mm	530
	Tie Rod Spacing	mm	570*570
	Max.Mold Thickness	mm	570
	Min.Mold Thickness	mm	230
	Ejection Stroke	mm	130
	Ejector Force	KN	62
	Thimble Root Number	pcs	13
Others	Max. Pump Pressure	Mpa	16
	Pump Motor Power	KW	30
	Electrothermal Power	KW	16
	Machine Dimensions (LWH)	M	6.31.82.2
	Machine Weight	T	9.5

The Application of Injection Molding Machine in Syringe

Injection molding machines can produce some common spare parts for syringes, including: Syringe head: The syringe head is a key part of the syringe. It is used to control the flow and injection speed of the medicinal liquid. In the injection molding machine, the syringe head with the correct shape and size can be injected through the mold.

Syringe body: The syringe body is the part used to hold the medicinal liquid. In the injection molding machine, a syringe body of suitable shape and size can be injected according to the design of the syringe.

Syringe plunger: The syringe plunger is the part used to control the flow and injection of liquid medicine. In the injection molding machine, a syringe plunger of the correct size and material can be injected through the mold.

Syringe screw: The syringe screw is mainly used to push the movement of the syringe plunger. In the injection molding machine, a syringe screw of suitable material and size can be injected according to the needs of the syringe.

Syringe sleeve: The syringe sleeve is the part used to fix the syringe plunger and screw. In the injection molding machine, a syringe sleeve of suitable material and size can be injected through the mold.

Injection molding machine components

Hydraulic and pneumatic components:

Solenoid Valve	YUKEN(TAIWAN)	Oil Pump	SUMITOMO(Japan)

Oil Motor	INTERMOT	Oil seal	NOK(Japan) or Italian oil seal

electronic component:

Controller	ARCUCHI	Servo Motor	Guilin Stars Technology,China
Electronic ruler	GEFRAN/WOOG/Same Quality Product	Transducer	GEFRAN/Same Quality product
proximity switch	FORTEK (TAIWAN)	Limit switch	PIZZATO(Italy）
Switch	Schneider, Taiwan Shilin, Fuji and other brand components
