ZHENHUA Injection Molding Machine for T60 light bulb diffuser producing

Short Description:

3.The Application of Injection Molding Machine in Light Bulb Diffuser

Injection molding machines can produce light bulb spare parts including light bulb casings, light bulb holders,light bulb reflectors, etc.

Can use a variety of materials to produce T-shaped lampshades. Common materials include polypropylene (PP), polyethylene (PE), polystyrene (PS), polycarbonate (PC) and other plastic materials.

Send email to us

Product Detail

Product Tags

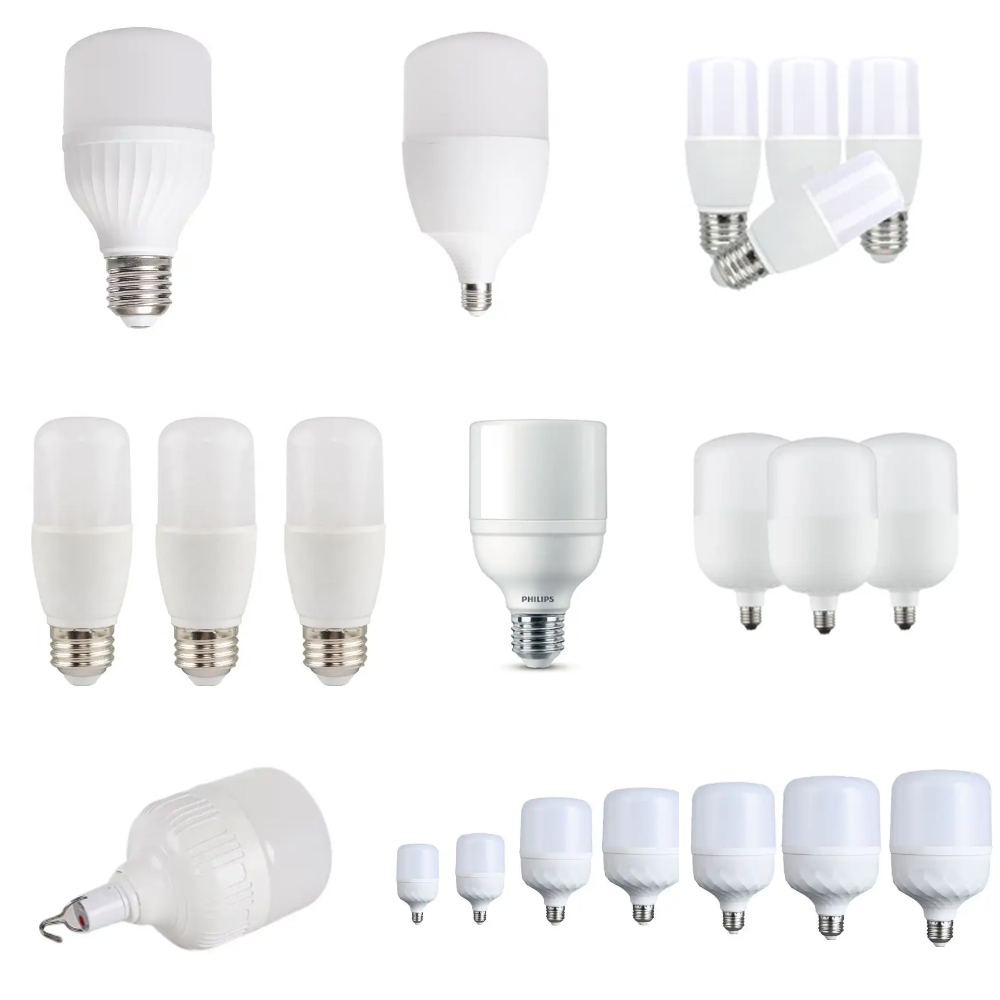

T60 Bulb Diffuser Product Picture

Technical Parameter

Technical Parameter		Unit	268T
Technical Parameter		Unit	A	B	C
Injection Unit	Screw Diameter	mm	50	55	60
	Theoretical Injection Volume	OZ	18	22	26
	Injection Capacity	g	490	590	706
	Injection Pressure	MPa	209	169	142
	Screw Rotation Speed	rpm	0-170
Clamping Unit	Clamping Force	KN	2680
	Toggle Stroke	mm	530
	Tie Rod Spacing	mm	570*570
	Max.Mold Thickness	mm	570
	Min.Mold Thickness	mm	230
	Ejection Stroke	mm	130
	Ejector Force	KN	62
	Thimble Root Number	pcs	13
Others	Max. Pump Pressure	Mpa	16
	Pump Motor Power	KW	30
	Electrothermal Power	KW	16
	Machine Dimensions (LWH)	M	6.31.82.2
	Machine Weight	T	9.5

Advantages of a standard injection molding machine

Standard injection molding machine’s advantages:

(1)Stable and reliable: driven by hydraulic system, stable and reliable performance. It can achieve high pressure and high speed operation to ensure the stability of product size and quality.

(2)Relatively low cost: Compared to new technology injection molding machines, the cost of standard injection molding machines is usually lower.

(3)Easy maintenance: The use of hydraulic systems, parts and maintenance tools are relatively easy to obtain, and the maintenance cycle is short.
